PFA Male BSPT(R/RC) Connector Flare Type
Material : PFA

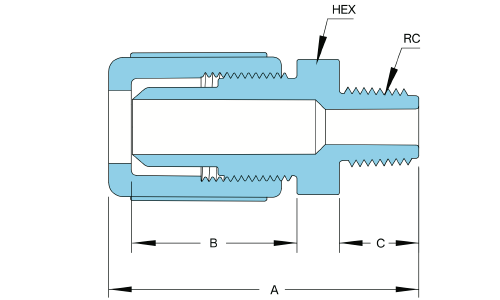

P·DNPT-TYPE PFA Male RC Straight Fitting
Specifications
| PFA Flare-Type Male RC Straight Fitting | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| inch Tube Type | |||||||||
| NO. | Tube O.D. | RC Size | Orifice | A | B | C | HEX | ||
| P·DRC-WY0010 | 1/4" | 1/8" | 3 | 47 | 24 | 9 | 15 | ||
| P·DRC-WY0011 | 1/4" | 1/4" | 3 | 50 | 24 | 14 | 15 | ||
| P·DRC-WY0012 | 1/4" | 3/8" | 3 | 51 | 24 | 14 | 17 | ||
| P·DRC-WY0013 | 1/4" | 1/2" | 3 | 53 | 24 | 16 | 23 | ||
| P·DRC-WY0014 | 3/8" | 1/4" | 6 | 53 | 26 | 14 | 20 | ||
| P·DRC-WY0015 | 3/8" | 3/8" | 6 | 53 | 26 | 14 | 20 | ||
| P·DRC-WY0016 | 3/8" | 1/2" | 6 | 56 | 26 | 17 | 23 | ||
| P·DRC-WY0017 | 1/2" | 1/8" | 3 | 54 | 29 | 13 | 23 | ||
| P·DRC-WY0018 | 1/2" | 1/4" | 3 | 55 | 29 | 14 | 23 | ||
| P·DRC-WY0019 | 1/2" | 3/8" | 6 | 56 | 29 | 14 | 23 | ||
| P·DRC-WY0020 | 1/2" | 1/2" | 9 | 58 | 29 | 17 | 23 | ||
| P·DRC-WY0021 | 1/2" | 3/4" | 9 | 59 | 29 | 17 | 30 | ||
| P·DRC-WY0022 | 3/4" | 3/8" | 6 | 60 | 32 | 14 | 30 | ||
| P·DRC-WY0023 | 3/4" | 1/2" | 9 | 63 | 32 | 17 | 30 | ||
| P·DRC-WY0024 | 3/4" | 3/4" | 16 | 63 | 32 | 17 | 30 | ||
| P·DRC-WY0025 | 3/4" | 1" | 16 | 67 | 32 | 21 | 36 | ||
| P·DRC-WY0026 | 1" | 1/2" | 9 | 70 | 37 | 17 | 38 | ||
| P·DRC-WY0027 | 1" | 3/4"" | 16 | 68 | 37 | 17 | 38 | ||
| P·DRC-WY0028 | 1" | 1" | 22 | 75 | 37 | 22 | 38 | ||
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
Pressure / Temperature Ratings Chart
