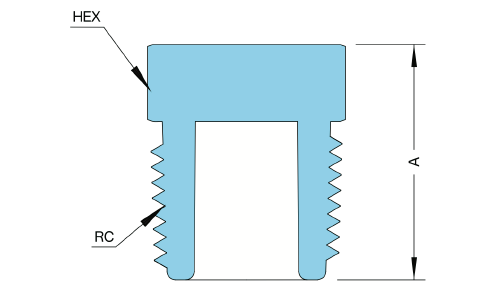

PFA Male R/BSPT Plug
Material : PFA
P·RCP-TYPE PFA Male NPT Plug
Specifications
| inch Tube Type | |
|---|---|
| RC Size | A |
| 1/8" | 16 |
| 1/4" | 21 |
| 3/8" | 21 |
| 1/2" | 24 |
| 3/4" | 24 |
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
Pressure / Temperature Ratings Chart
