PFA Nut
Material : PFA
PFA Union Nut

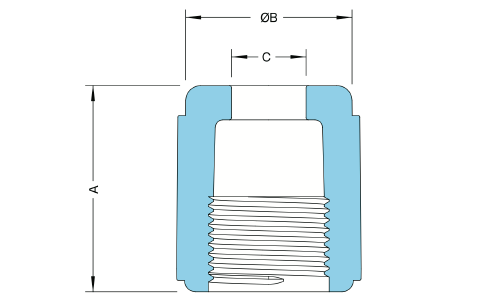

Specifications
| inch Tube Type | |||
|---|---|---|---|
| Tube O.D. | A | B | C |
| 1/4" | 26 | 15 | 6 |
| 4mm | 26 | 15 | 4 |
| 6mm | 26 | 15 | 6 |
| 3/8" | 27 | 22 | 9 |
| 8mm | 27 | 22 | 8 |
| 1/2" | 30 | 27 | 13 |
| 1/2" | 30 | 27 | 12 |
| 3/4" | 32 | 37 | 19 |
| 1" | 40 | 47 | 25 |
| 1-1/4" | 48 | 55 | 31 |
| 1-1/4" | 48 | 55 | 32 |
| 1-1/2" | 59 | 68 | 38 |
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
Pressure / Temperature Ratings Chart
