PFA Union Nut (Sleeve)
Material : PFA
PFA Union Nut (Sleeve)
Specifications

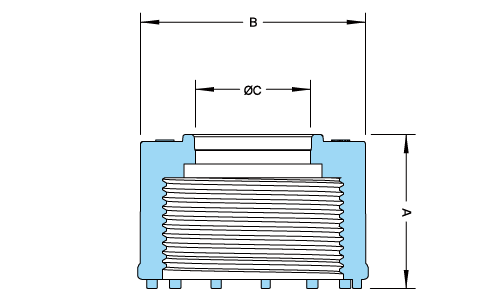

| inch Tube Type | |||
|---|---|---|---|
| Tube O.D. | A | B | C |
| 3mm | 11 | 12 | 3 |
| 4mm | 11 | 12 | 4 |
| 1/8" | 11 | 12 | 3 |
| 1/4" | 16 | 15 | 6 |
| 3/8" | 20 | 22 | 9 |
| 1/2" | 23 | 27 | 12 |
| 8mm | 18 | 11 | 8 |
| 3/4" | 28 | 37 | 19 |
| 1" | 32 | 47 | 25 |
| 1-1/4" | 48 | 30 | 31 |
| 1-1/2" | 48 | 67 | 38 |
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
Pressure / Temperature Ratings Chart
