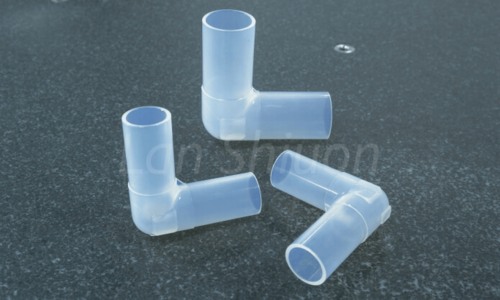

PFA Fusible Equal Elbow
Material : PFA
P·W-TYPE PFA Welded Equal Elbow Fitting
Specifications
| inch Tube Type | ||||||||
|---|---|---|---|---|---|---|---|---|
| NO. | Tube O.D. | Orifice | A | ØB | ØC | D | ||
| P·W-WY720 | 1/4" | 3 | 38 | 6 | 3 | 25 | ||
| P·W-WY721 | 3/8" | 6 | 40 | 9 | 6 | 27 | ||
| P·W-WY722 | 1/2" | 9 | 48 | 12 | 9 | 34 | ||
| P·W-WY723 | 3/4" | 15 | 52 | 19 | 15 | 35 | ||
| P·W-WY724 | 1" | 22 | 63 | 25 | 22 | 39 | ||
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
- Fusion-welded design ensures highly stable and robust joints with excellent sealing integrity.
