PFA Compact Straight Fitting
Material : PFA
P·DFNPT-TYPE PFA Compact Straight Fitting
Specifications

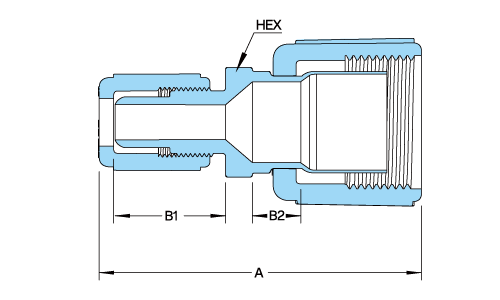

| inch Tube Type | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| NO. | Tube O.D. | Tube O.D.s | Orifice | A | B1 | B2 | HEX | ||
| 1/4" | 3/8" | 3 | 70 | 27 | 10 | 17 | |||
| 1/2" | 1" | 9 | 88 | 30 | 14 | 30 | |||
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
Pressure / Temperature Ratings Chart
