PFA Panel Mount Nut(Half Nut) PVDF
Material : PFA
PFA Panel Mount Nut(Half Nut) PVDF
Specifications
| PFA Panel Mount Nut(Half Nut) PVDF | ||||||
|---|---|---|---|---|---|---|
| inch Tube Type | ||||||

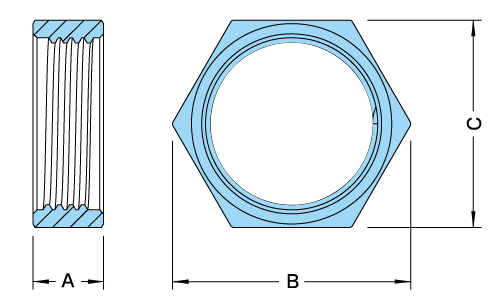

| NO. | HEX | A | B | C | ||
| 1/8" | 5 | 16 | 14 | |||
| 1/4" | 5 | 18 | 16 | |||
| 3/8" | 7 | 24 | 21 | |||
| 1/2" | 9 | 30 | 26 | |||
| 3/4" | 9 | 43 | 38 | |||
| 1" | 10 | 51 | 45 | |||
Product features
- Excellent chemical resistance; highly resilient in aggressive acid environments including hydrofluoric, sulfuric, and nitric acids.
- Temperature Limits: -18°C to 200°C (For sizes 1-1/2": Max. 150°C recommended)
- Engineered with minimal extractability and low adsorption characteristics, delivering the ultimate contamination control for UPW and high-cleanliness processes.
- Engineered with a seamless, high-purity smooth bore to prevent fluid residue and maximize contamination control.
Pressure / Temperature Ratings Chart
