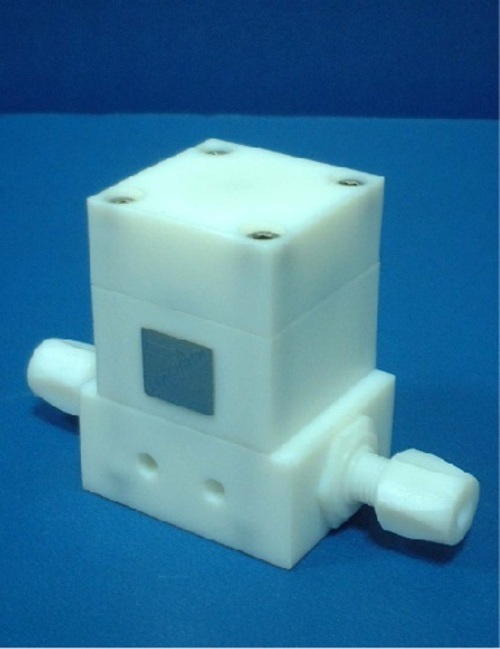

PNEUMATIC-DIAPHRAGM-AIR-PUMP
Material : TFM
| Model |
Pneumatic Diaphragm Pump |
| How to use |
AIR |
| Action |
Stem90° |
| Highest pressure |
0.7mpa |
| Highest temperature |
120°C |
| Lowest temperature |
-50°C |
| Constant temperature |
60°C |

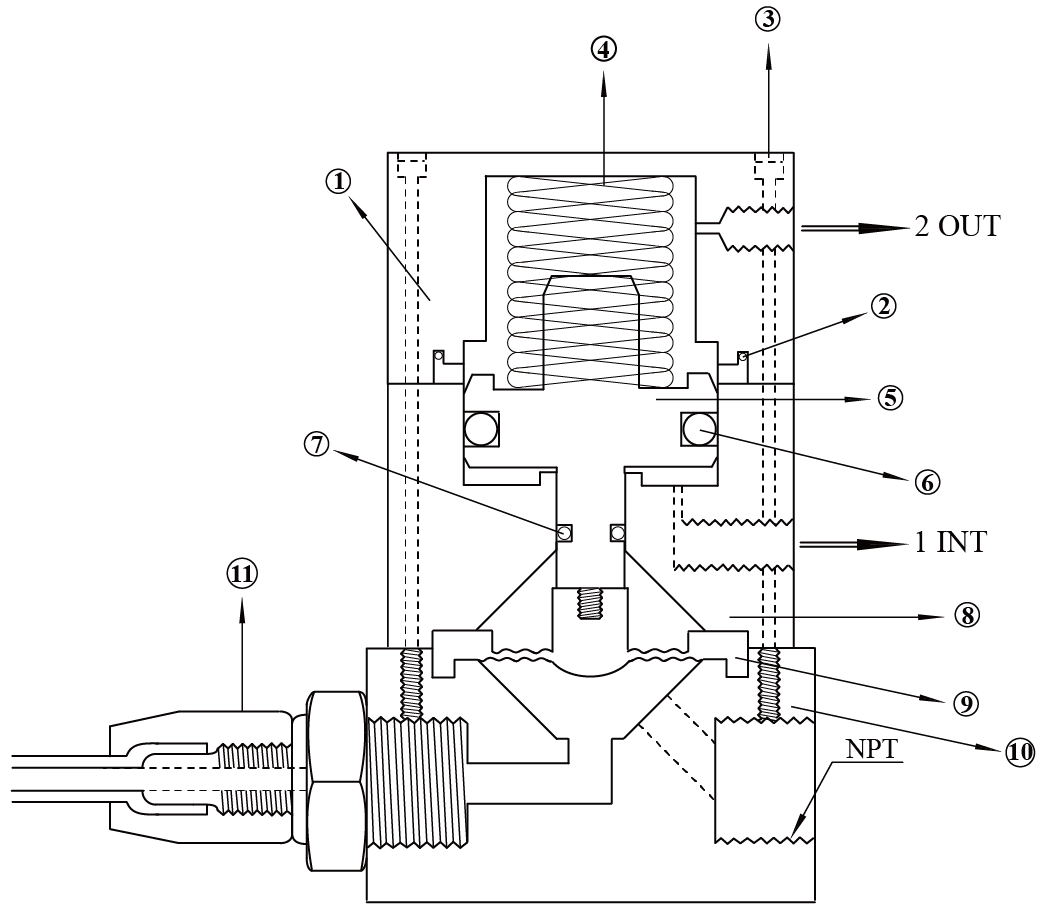

| ITEM |
PART NAME |
MATERIAL |
| 1 |
BODY |
TFM |
| 2 |
O-RING |
NBR |
| 3 |
SCREW |
SUS316 |
| 4 |
SPRING |
SUS316 |
| 5 |
PULL ROD |
PP |
| 6 |
O-RING |
NBR |
| 7 |
O-RING |
NBR |
| 8 |
BODY |
TFM |
| 9 |
DIAPHRAGM |
TFM |
| 10 |
BODY |
TFM |
| 11 |
UNION NUT |
TFM |

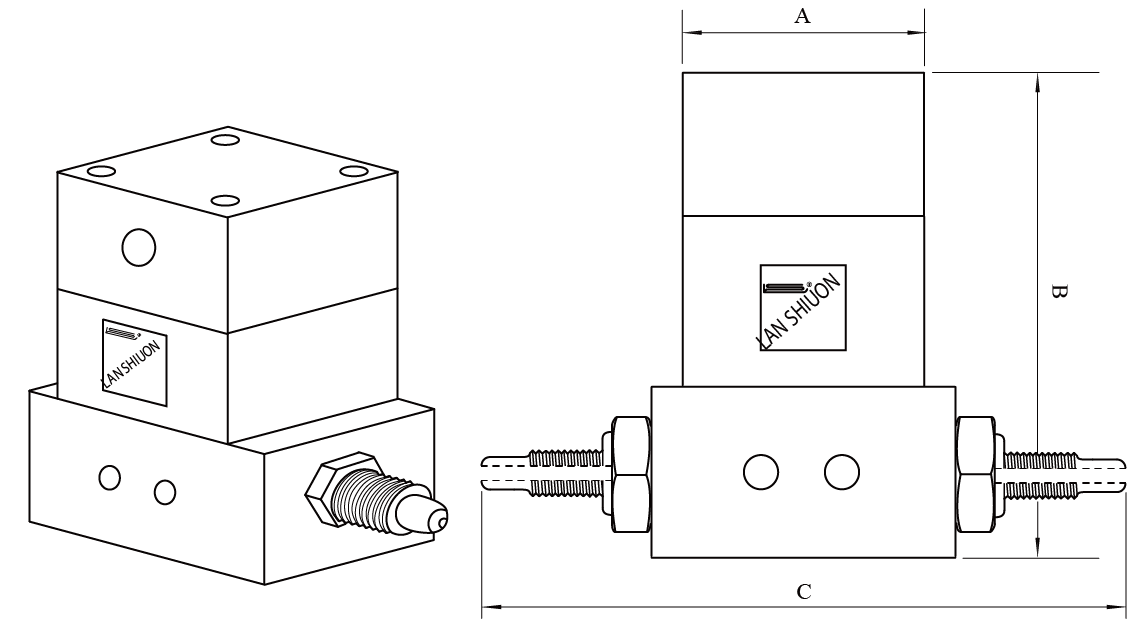

| Mm Tube type |
| NO. |
OD×ID |
A |
B |
C |
NPT |
| PH-N002 |
4×2 |
50 |
82 |
110 |
1/8" |
| PH-N004 |
6×4 |
50 |
82 |
110 |
1/4" |
| PH-N006 |
8×6 |
50 |
82 |
115 |
3/8" |
| PH-N008 |
10×8 |
50 |
82 |
115 |
1/2" |
| PH-N0010 |
12×10 |
50 |
82 |
115 |
1/2" |
| PH-N0016 |
19×15.8 |
65 |
106 |
130 |
3/4" |
| PH-N0022 |
25×22 |
65 |
106 |
130 |
1" |
| Inch Tube type |
| NO. |
OD×ID |
A |
B |
C |
NPT |
| PH-I004 |
1/8"×0.086" |
50 |
82 |
110 |
1/8" |
| PH-I006 |
1/4"×5/32" |
50 |
82 |
115 |
1/4" |
| PH-I008 |
3/8"×1/4" |
50 |
82 |
115 |
3/8" |
| PH-I0010 |
1/2"×3/8" |
50 |
82 |
115 |
1/2" |
| PH-I0016 |
3/4"×5/8" |
65 |
106 |
130 |
3/4" |
| PH-I0022 |
1"×7/8" |
65 |
106 |
130 |
1" |
