Spring Energized Seal

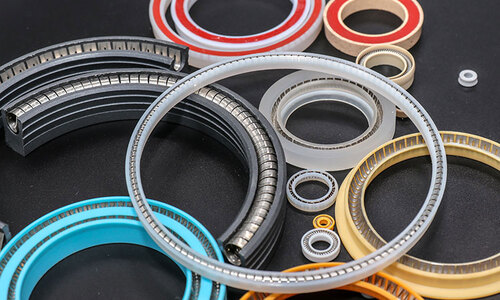

Spring Seals, also widely recognized as Spring-Energized PTFE Seals (or Variseals), are engineered high-performance sealing components comprised of a PTFE or modified PTFE sealing jacket energized by a specialized corrosive-resistant metal spring. Specially formulated to conquer extreme temperatures, high pressures, full vacuum, ultra-low friction, and aggressively corrosive chemical media, they deliver rock-solid, long-term sealing integrity.

Compared to conventional elastomeric rubber seals, spring-energized PTFE seals possess exceptional chemical inertness, a wide thermal spectrum, an ultra-low friction coefficient, and outstanding dimensional stability. They are widely utilized across demanding sectors such as aerospace, biotechnology, semiconductor, food & pharmaceutical, petrochemical, and precision machinery.

Application Areas

• Aerospace Industry：Engineered for high-pressure, extreme high/cryogenic temperatures, and severe operating environments, ensuring the sealing stability of critical flight systems.
• Biotech Equipment：Exceptionally resistant to aggressive acids, strong alkalis, solvents, and corrosive chemicals, minimizing the risk of premature sealing failure.
• Semiconductor Wet Processes：Ideal for high-cleanliness and ultra-high purity process environments, effectively mitigating risks of particle shedding, ionic leaching, and fluid leakage.
• Food & Pharmaceutical Processing：Formulated using FDA-compliant and hygienic-grade polymers, optimized for clean-in-place process machinery.
• Petrochemical Industry：Deployed in high-temperature, high-pressure, and highly corrosive piping, valve assemblies, and processing plant infrastructure to deliver long-duty lifecycle sealing.
• Vacuum Systems & Precision Components：Maximizes performance in slide blocks, pistons, piston rings, valve seats, bearing housings, and reciprocating mechanisms, combining ultra-low friction with stable sealing metrics.

Functional Classification: Static vs. Dynamic Sealing

• Static Sealing：Tailored for stationary components including flanges, process chambers, valve seats, mating joints, and face sealing configurations, systematically preventing the leakage of pressurized fluids or gases.
• Dynamic Sealing：Optimized for moving components such as pistons, rotating shafts, linear sliders, and reciprocating mechanisms. Even under high velocity, frequent start-stop cycles, or fluid-starved (dry-running) conditions, it drastically minimizes friction, mitigates abrasive wear, extends service life, and maintains stable sealing profiles.

Key Design Criteria for Piston Seals

• Low-Friction Actuation：The inherent low-friction profile of engineered PTFE compounds systematically lowers piston actuation resistance, boosting mechanical efficiency and positioning accuracy.
• High-Pressure & Vacuum Adaptability：Highly customizable via optimized spring profiles, sealing lip geometries, and custom compounding to master high pressures, hard vacuums, hydraulic cylinders, gas control valves, and precision instrumentation.
• Reinforced Material Matrices：To counteract varying mechanical loads, abrasion, and media types, we offer custom PTFE compounds filled with carbon fiber, glass fiber, graphite, bronze, or proprietary additives to drastically enhance structural tensile strength, wear resistance, and operational lifespan.

Critical Sealing Selection Parameters

• Thermal Thresholds：Comprehensive evaluation of maximum/minimum temperatures and thermal cycling to prevent material degradation triggered by thermal expansion, cryogenic contraction, or long-term thermal aging.
• Pressure Profiles：Evaluation of systemic working pressure, instantaneous spike pressures, vacuum levels, and pressure directionality to select the ideal seal profile geometry.
• Chemical Compatibility：Rigorous verification of the chemical properties of target fluids or gases to avoid polymer swelling, chemical erosion, outgassing, or process contamination.。
• Friction & Tribological Wear：Tailoring the PTFE composite matrix and lip pre-load based on linear/rotational velocity, surface roughness, lubrication states, and radial contact pressure.

LanShiuon Competitive Engineering Advantages

• Innovative Materials：Deeply specialized in specialized PTFE compounding, modified fluoropolymers, and spring geometry design, rapidly adapting to niche across global industries.
• Customized Solutions：支Fully supporting OEM development, non-standard dimensions, complex custom geometries, low-volume/high-spec projects, and legacy item replication to solve standard-defying sealing puzzles.
• Fast Delivery & Easy Maintenance：Utilizing modular design methodologies and flexible CNC machining capabilities to significantly condense prototyping, assembly, and replacement lead times.
• Stable Supply Chain & Retrofit Engineering：Assisting clients in developing alternatives for obsolete OEM seals, alongside technical-driven upgrades aligned with equipment retrofits or advanced process scaling.

Conclusion: Selecting the Perfect Spring Seal Defines System Reliability

A spring-energized PTFE seal is not just a single spare part; it is the ultimate linchpin determining equipment reliability, maintenance overhead, and operational efficiency. Armed with advanced material compounding R&D, structural sealing design experience, and precision machining technologies, LanShiuon is fully dedicated to delivering high-performance engineered solutions—reducing your total cost of ownership (TCO), expanding machinery lifespan, and stabilizing process yield.
