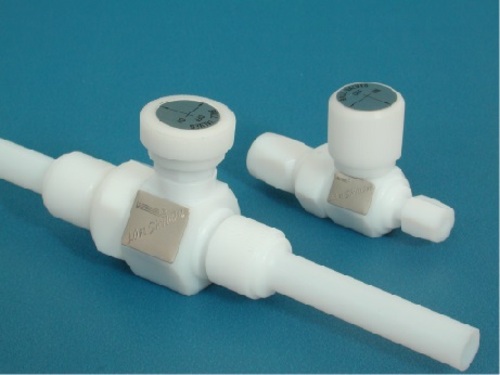

TFM-2PA-BALL-VALVE
Material : TFM
Applications & Versatility : Chemical Reagents , Organic Solvents , Ultra-Pure Water (UPW) Delivery , Semiconductor Equipment Hook-up , Various Industrial Chemical Liquids.
| Model | Change Ball valve |
|---|---|
| How to use | Hand |
| Action | Stem90° |
| Highest pressure | 0.7mpa |
| Highest temperature | 120°C |
| Lowest temperature | -50°C |
| Constant temperature | 60°C |

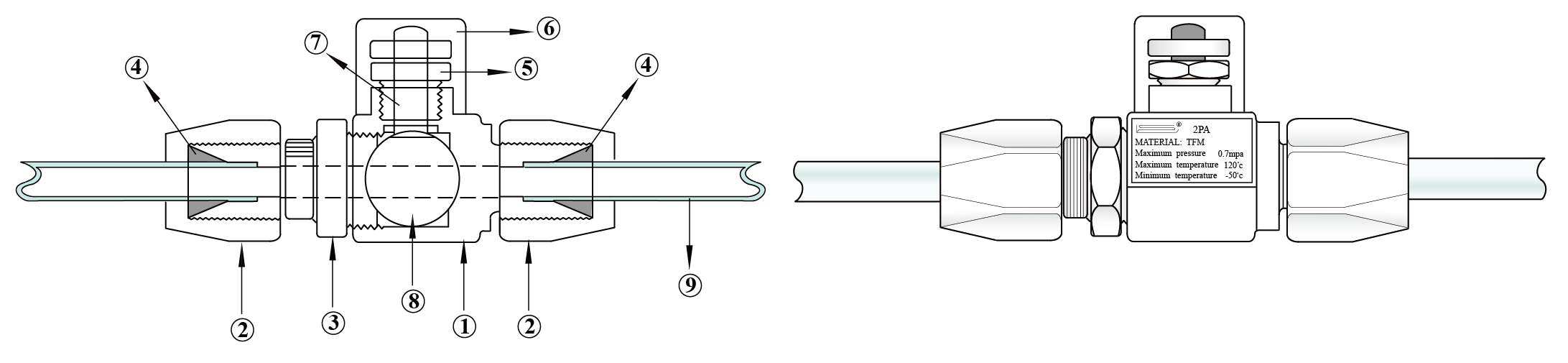

| ITEM | PART NAME | MATERIAL | ||
|---|---|---|---|---|
| 1 | BODY | TFM | ||
| 2 | UNION NUT | TFM | ||
| 3 | CAP | TFM | ||
| 4 | PRIMARY SEAL | PTFE | ||
| 5 | GLAND | TFM | ||
| 6 | HANDLE | PVDF，PCTFE，POM | ||
| 7 | STEM | PEEK，PCTFE，PVDF | ||
| 8 | BALL | PEEK，PCTFE，PVDF | ||
| 9 | TUBE | PFA，PTFE，FEP | ||

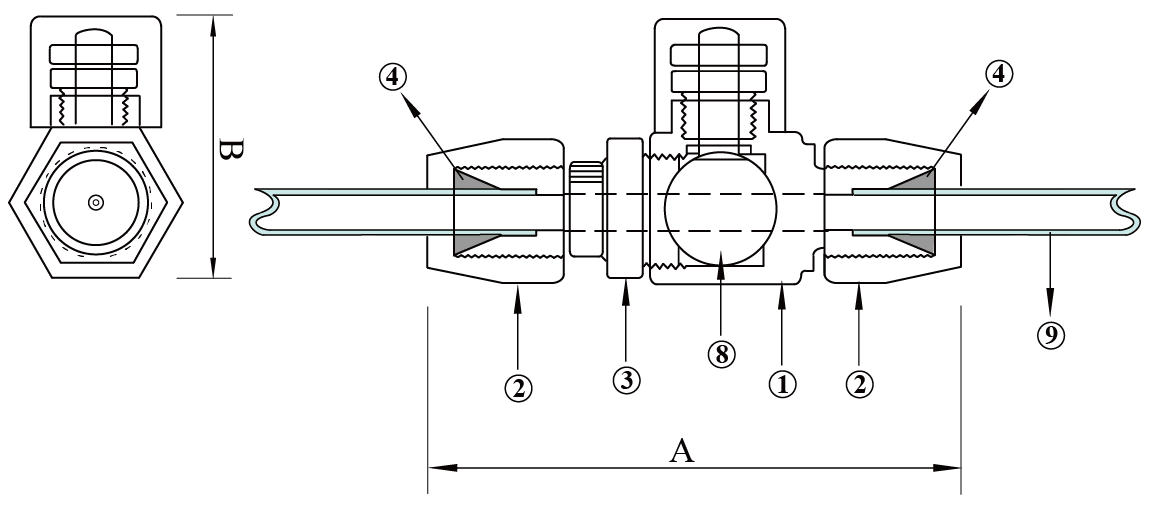

| Mm Tube type | |||||
|---|---|---|---|---|---|
| NO. | OD×ID | A | B | C | D |
| 2PA-N002 | 4×2 | 62 | 38 | 12 | 32 |
| 2PA-N004 | 6×4 | 62 | 38 | 12 | 32 |
| 2PA-N006 | 8×6 | 94 | 58 | 16 | 32 |
| 2PA-N008 | 10×8 | 94 | 58 | 19 | 50 |
| 2PA-N0010 | 12×10 | 94 | 58 | 19 | 55 |
| 2PA-N0016 | 19×15.8 | 108 | 73 | 26 | 60 |
| 2PA-N0022 | 25×22 | 120 | 75 | 32 | 65 |
| Inch Tube type | |||||
|---|---|---|---|---|---|
| NO. | OD×ID | A | B | C | D |
| 2PA-I004 | 1/8"×0.086" | 62 | 38 | 12 | 32 |
| 2PA-I006 | 1/4"×5/32" | 62 | 38 | 16 | 32 |
| 2PA-I008 | 3/8"×1/4" | 94 | 58 | 19 | 50 |
| 2PA-I0010 | 1/2"×3/8" | 94 | 58 | 19 | 55 |
| 2PA-I0016 | 3/4"×5/8" | 108 | 73 | 26 | 60 |
| 2PA-I0022 | 1"×7/8" | 120 | 80 | 32 | 65 |
