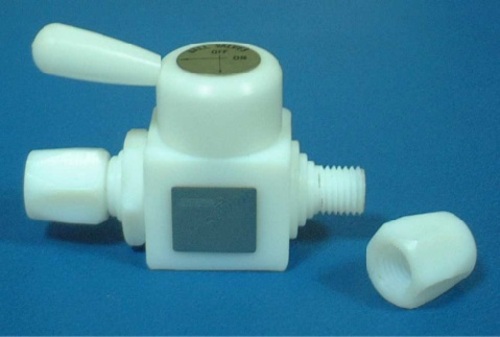

TFM-3PA-BALL-VALVE
Material : TFM

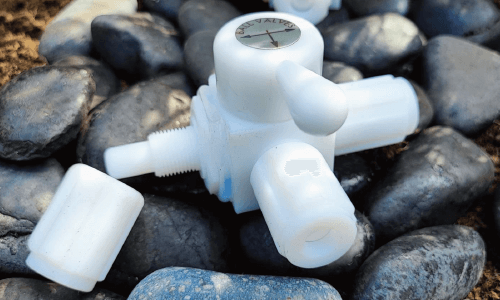

TFM-3PA BALL VALVE Functional Features: The main fluid flows without remaining inside the ball valve, and the lined seat design is replaceable. The fluid flows smoothly inside the pipe, and the valve can withstand higher pressures.
Applications & Versatility : Chemical Reagents , Organic Solvents , Ultra-Pure Water (UPW) Delivery , Semiconductor Equipment Hook-up , Various Industrial Chemical Liquids.
| Model | Change Ball valve |
|---|---|
| How to use | Hand |
| Action | Stem90° |
| Highest pressure | 0.4mpa |
| Highest temperature | 120°C |
| Lowest temperature | -50°C |
| Constant temperature | 60°C |

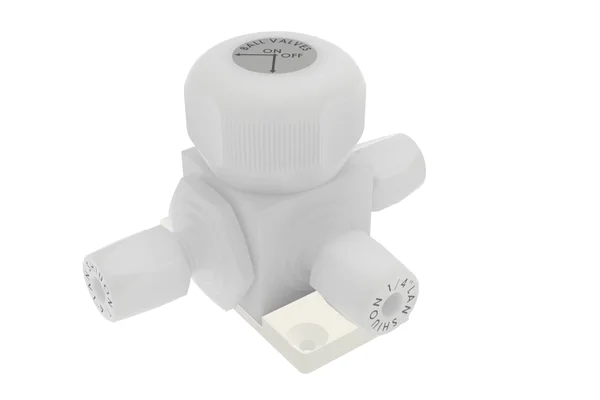

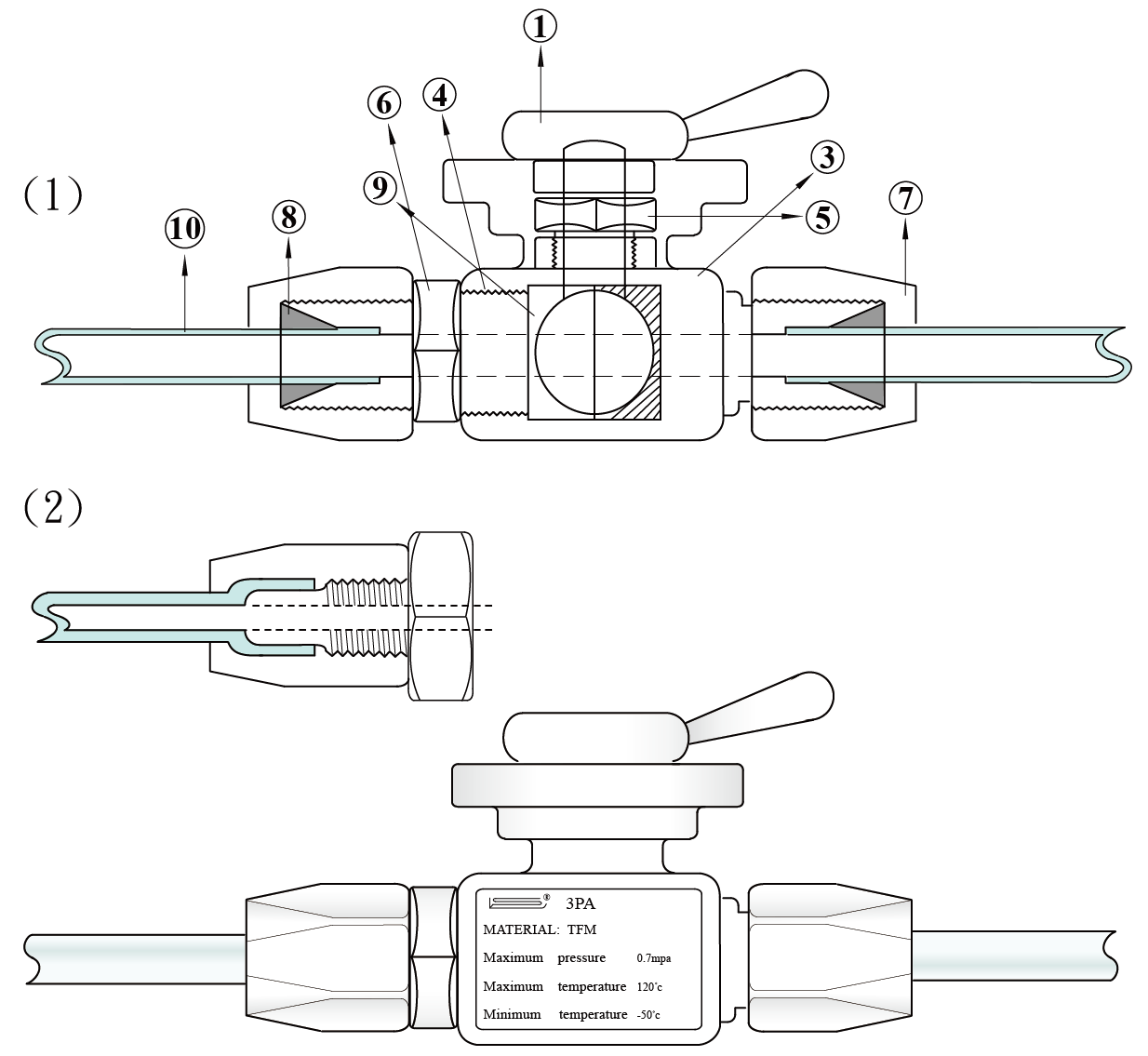

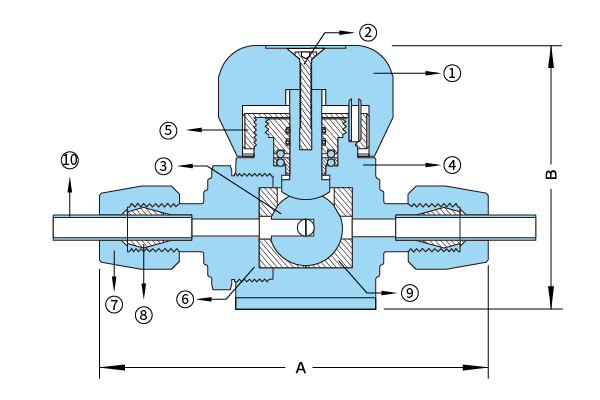

| ITEM | PART NAME | MATERIAL | ||
|---|---|---|---|---|
| 1 | HANDLE | PVDF，POM | ||
| 2 | STEM | PEEK，PCTFE，PVDF | ||
| 3 | BALL | PEEK，PCTFE，PVDF | ||
| 4 | BODY | TFM | ||
| 5 | GLAND | TFM | ||
| 6 | CAP | TFM | ||
| 7 | UNION NUT | TFM | ||
| 8 | PRIMARY SEAL | PTFE | ||
| 9 | SEAT | PTFE | ||
| 10 | TUBE | PFA，PTFE，FEP | ||
| Inch Tube type | |||
|---|---|---|---|

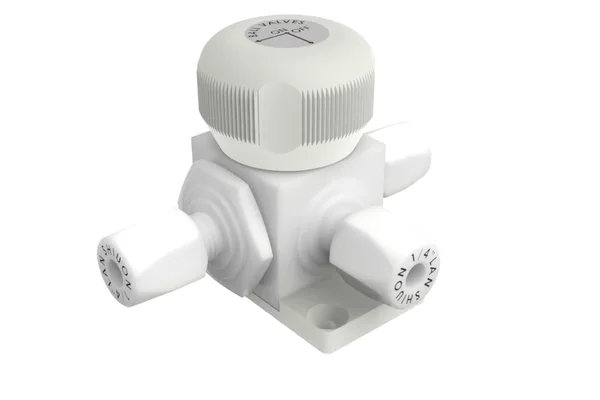

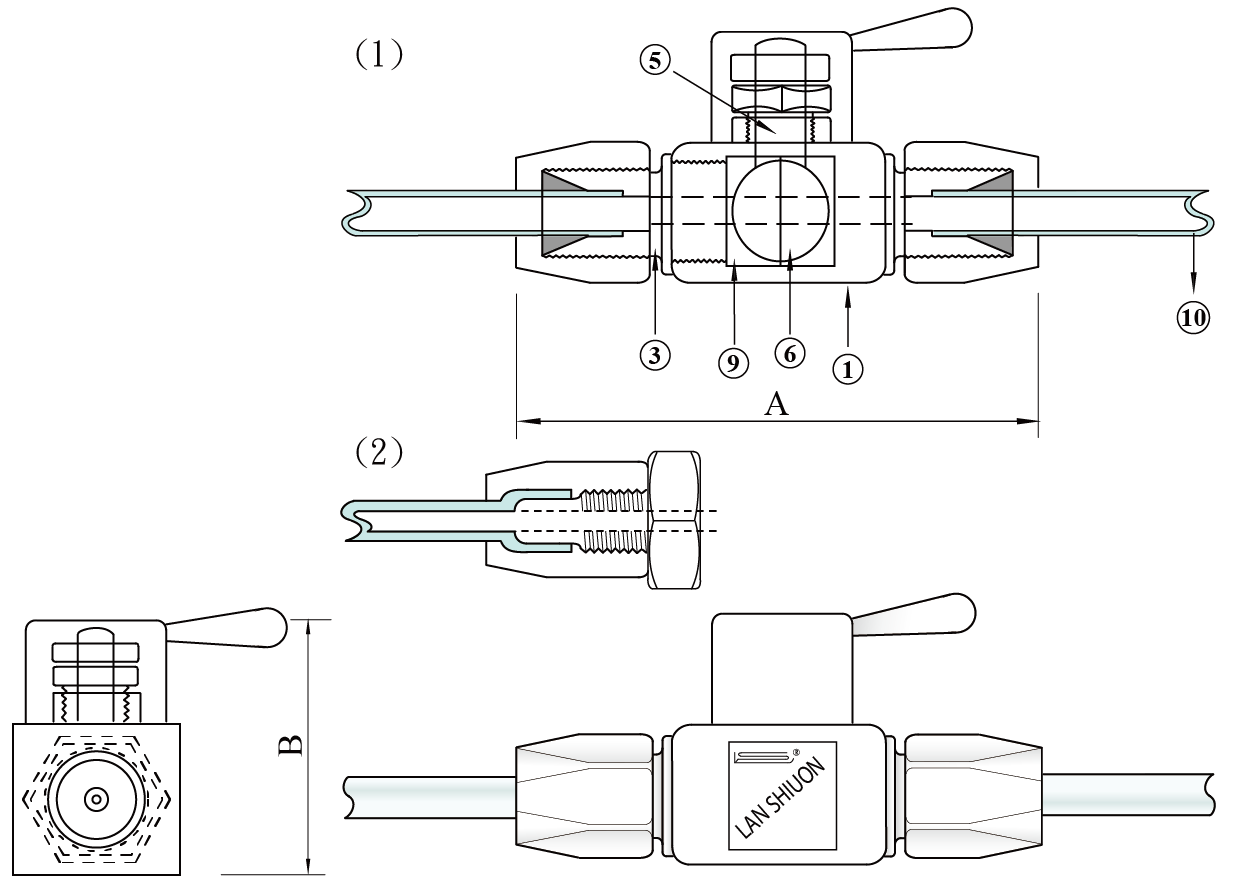

| NO. | OD×ID | A | B |
| 3PA-I002 | 1/8"×0.086" | 65 | 38 |
| 3PA-I004 | 1/4"×5/32" | 70 | 38 |
| 3PA-I006 | 3/8"×1/4" | 85 | 58 |
| 3PA-I008 | 1/2"×3/8" | 85 | 58 |
| 3PA-I0010 | 3/4"×5/8" | 115 | 73 |
| 3PA-I0016 | 1"×7/8" | 125 | 80 |
| Mm Tube type | |||||
|---|---|---|---|---|---|
| NO. | OD×ID | A | B | ||
| 3PA-N002 | 3×2 | 4×2 | 4×3 | 65 | 38 |
| 3PA-N004 | 6×4 | 70 | 38 | ||
| 3PA-N006 | 8×6 | 70 | 38 | ||
| 3PA-N008 | 10×8 | 85 | 58 | ||
| 3PA-N0010 | 12×10 | 85 | 58 | ||
| 3PA-N0016 | 19×15.8 | 115 | 73 | ||
| 3PA-N0022 | 25×22 | 125 | 80 | ||
